Where and How!

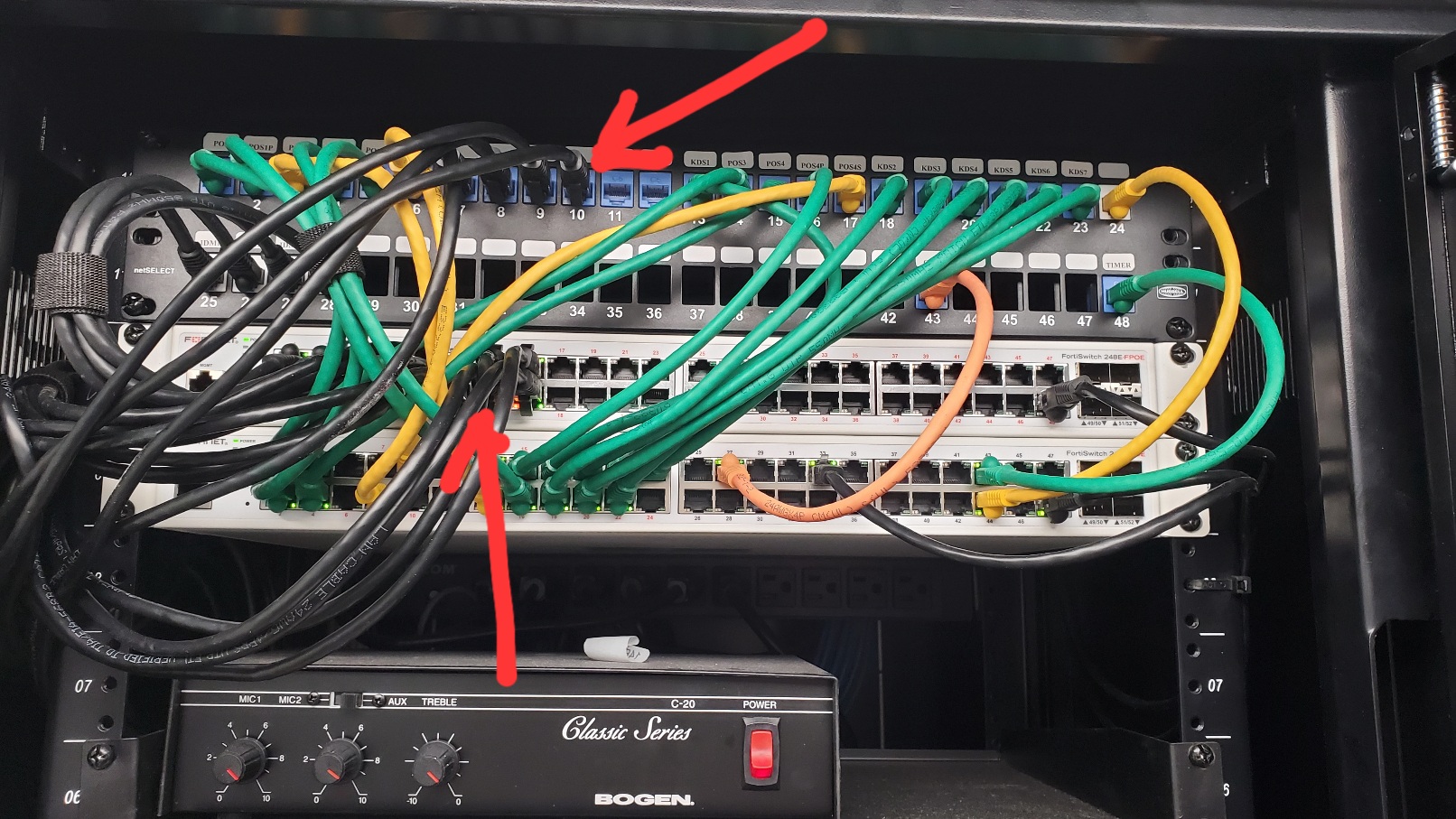

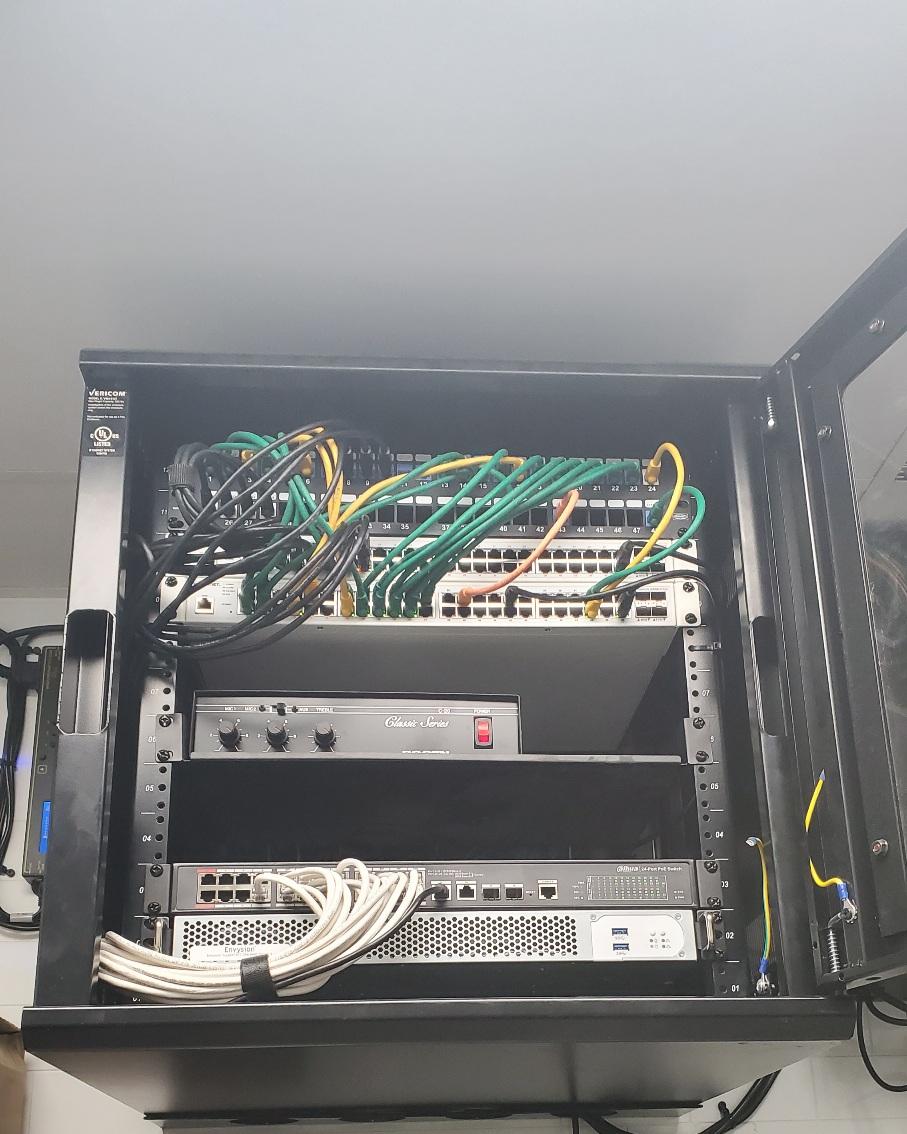

Network Cabinet
(Use any available port between 1-24 on the switch)

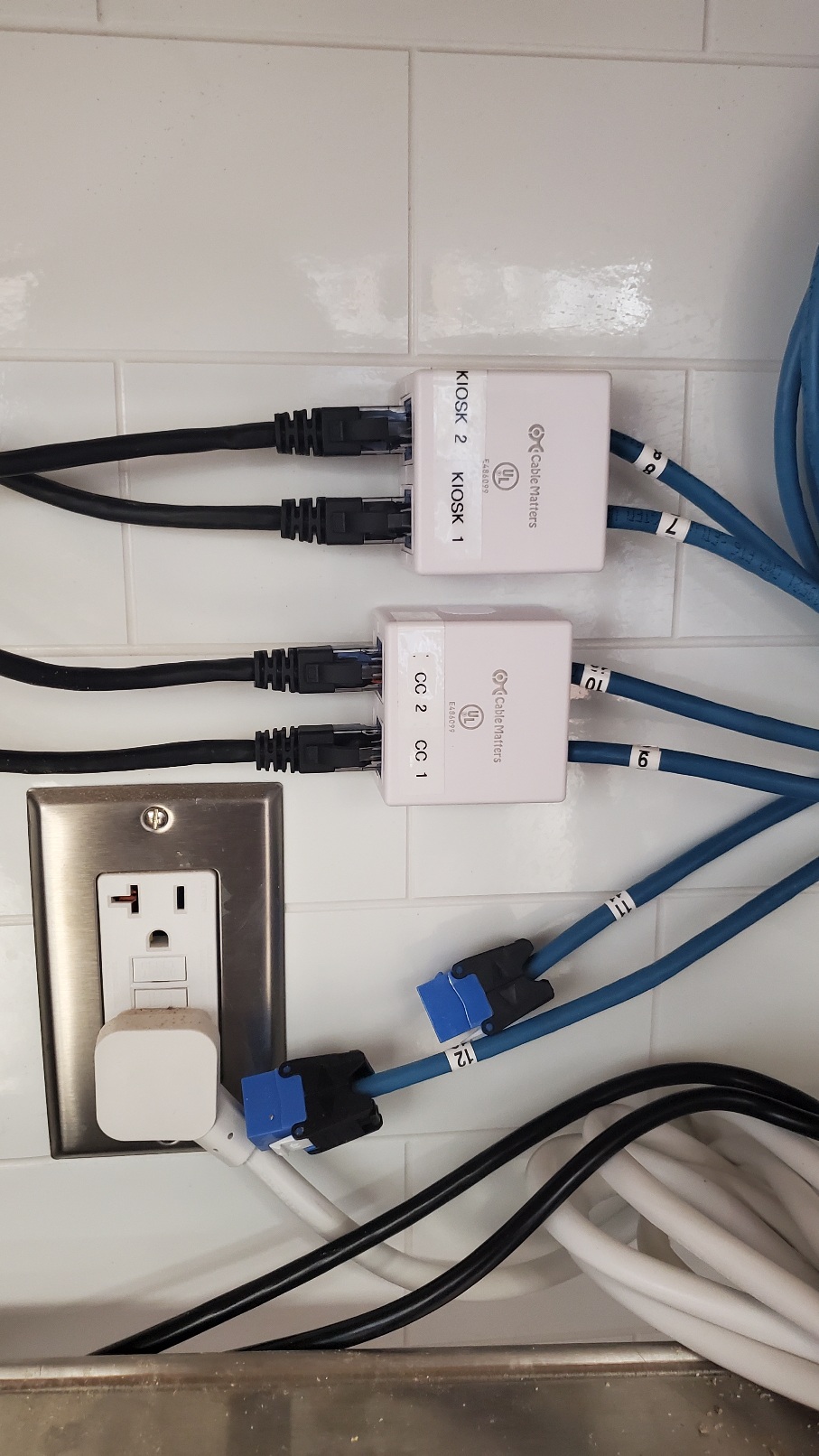

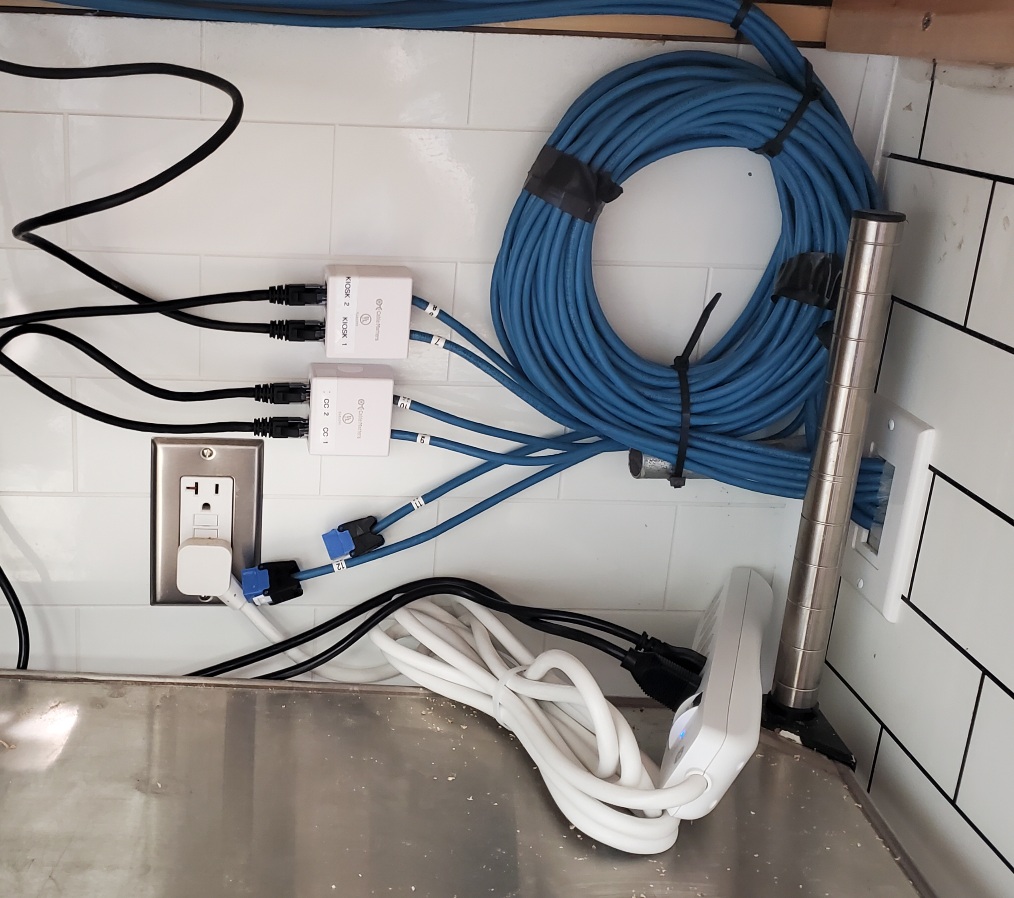

Wiring

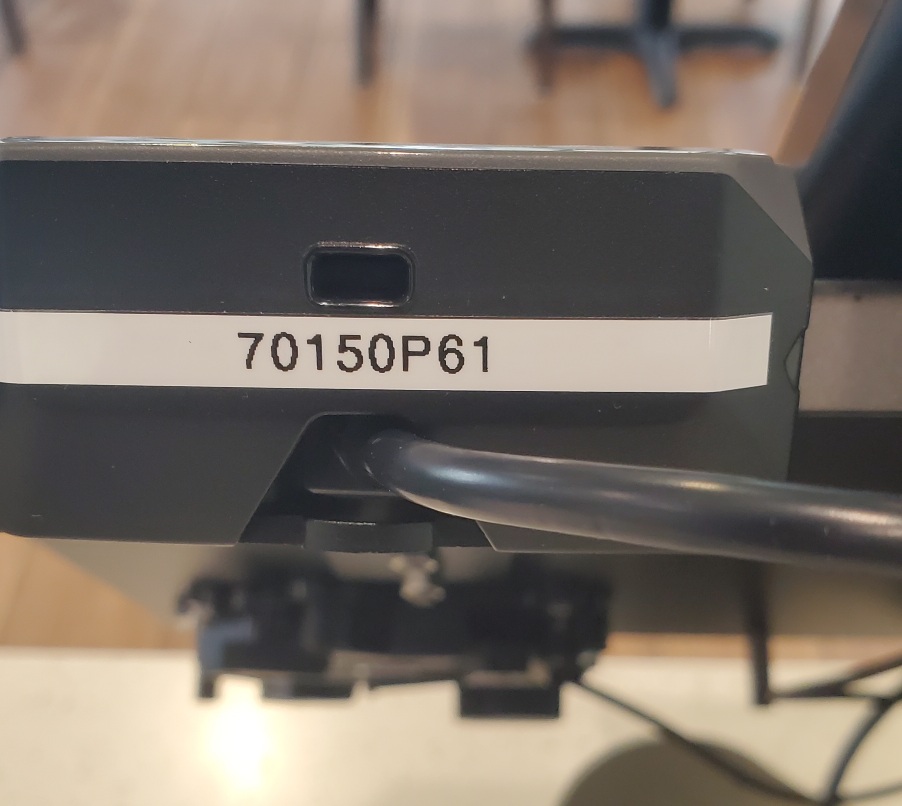

CC Pin pads - Back of the CC pin pad
(Pin pad numbers must match with store number)

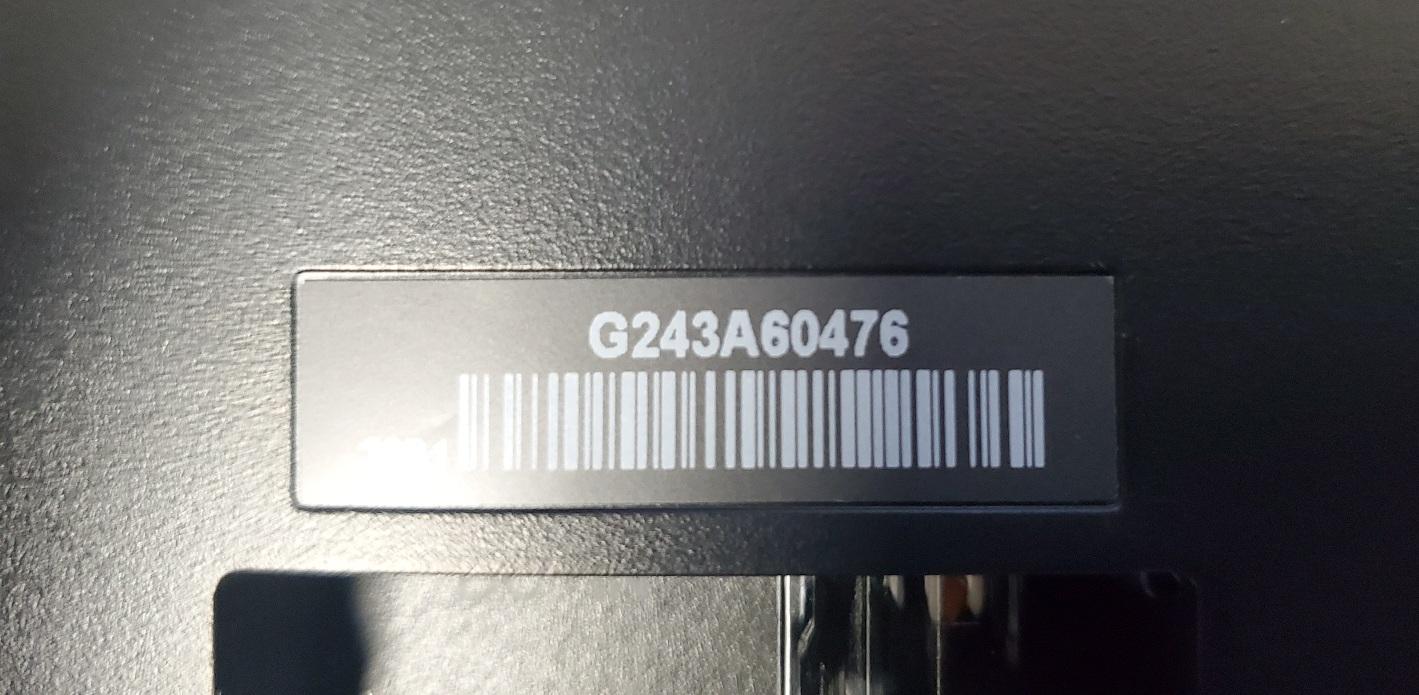

Kiosk Numbers - Back of the monitor
(Support will need these numbers to update the kiosks)

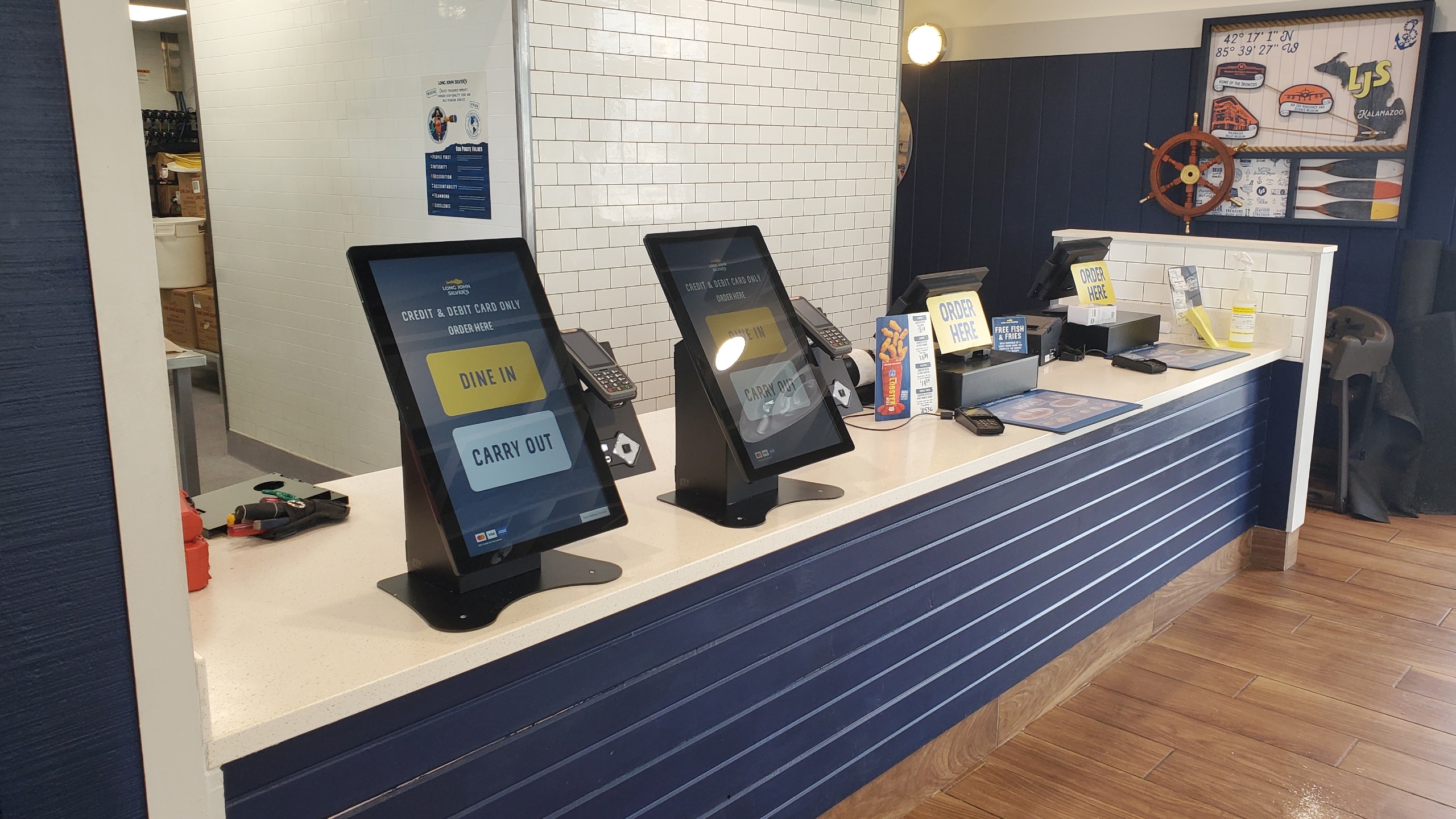

Final Completed Installation
